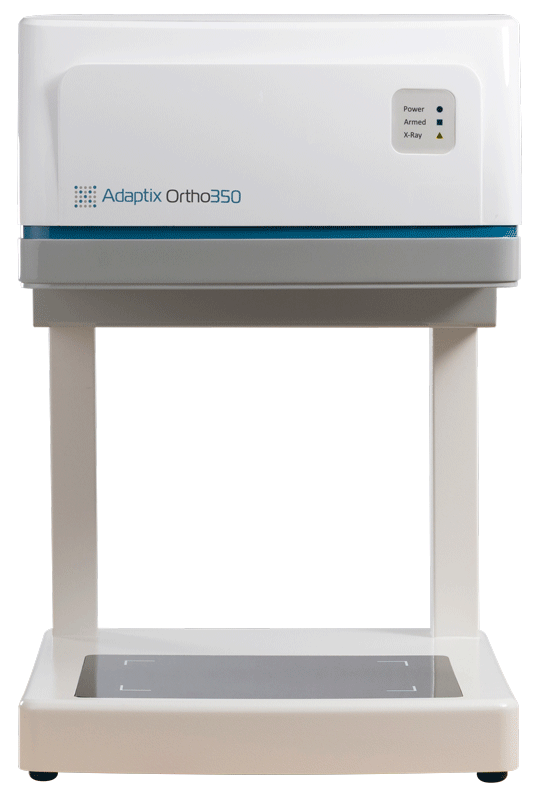

The Adaptix Ortho350 is a cutting-edge, portable Digital Tomosynthesis (DT) system built to bring high-resolution, low-dose 3D imaging directly to the point of care. Where traditional 2D X-ray produces flat, overlapping images and CT requires large, expensive, immobile infrastructure, the Ortho350 closes the gap — delivering depth-resolved 3D image stacks of complex joint structures in under 20 seconds, without the cost, space, or dose burden of CT.

By acquiring low-dose X-ray projections from an array of positions and reconstructing them into a detailed 3D dataset, the Ortho350 gives clinicians clearer visualization of fractures, bone conditions, and degenerative disease — improving diagnostic confidence exactly where and when it’s needed.

Key Features

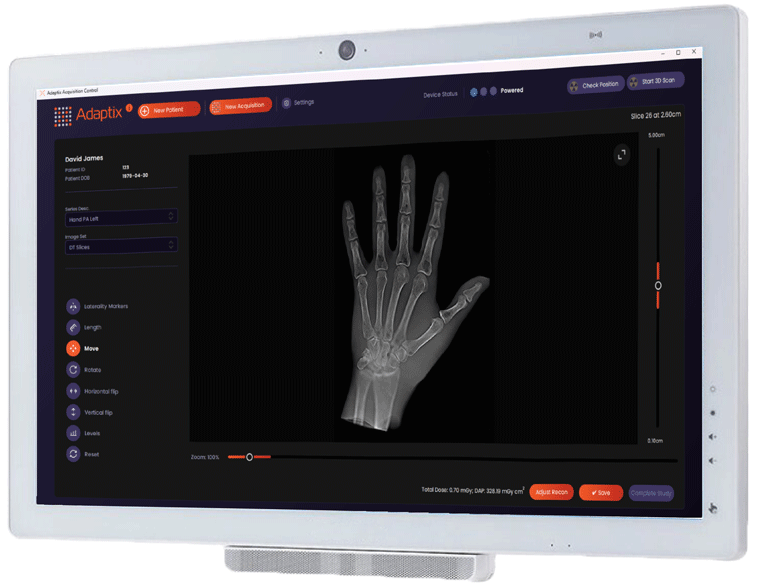

• Fast — Turbo DT Recon: A full 3D tomosynthesis scan completes in under 20 seconds. A proprietary reconstruction engine delivers the first 3D slices within seconds of scan completion and the full multi-slice dataset within 15 seconds — minimizing time in radiology and accelerating diagnosis without sacrificing image quality.
• Low-Dose, High Clarity: Low-dose 3D acquisition protocols deliver diagnostic-quality datasets at dose levels comparable to traditional 2D radiographic studies — and far below CT — making the Ortho350 ideal for both initial assessment and follow-up imaging.
• MultiSweepDT Acquisition: Unlike conventional tomosynthesis systems that sweep in a single linear path, the Ortho350’s unique acquisition array captures data from multiple angles, maximizing image quality and enhancing through-plane resolution.

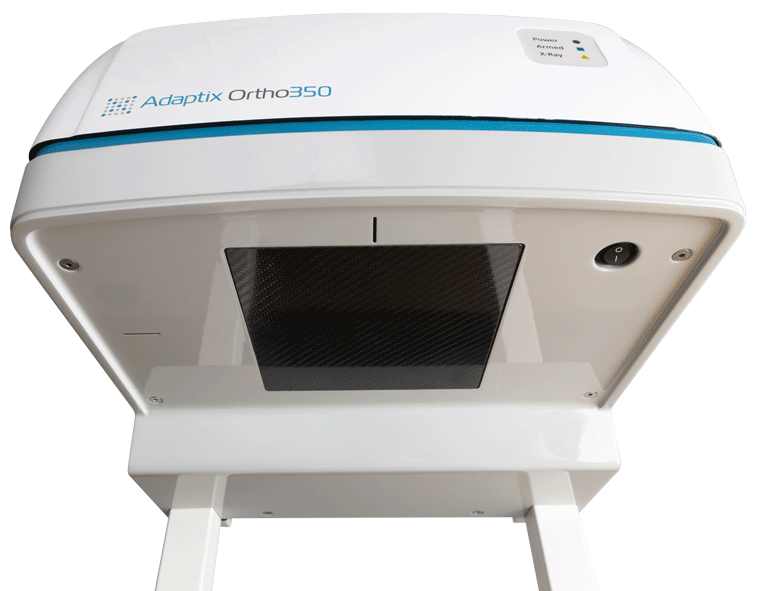

• High-Resolution Imaging Panel: A 16cm x 24cm (6.3in x 9.4in) detector with 98-micron pixel resolution supports full portability without compromising sharpness, edge detail, or diagnostic confidence in 2D or 3D.

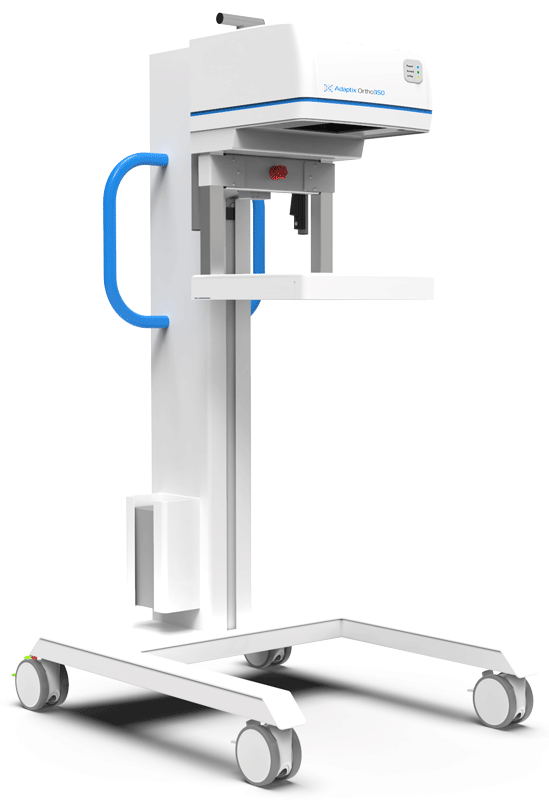

• Portable & Compact: At just 40cm x 42cm x 61cm (16in x 17in x 24in), the Ortho350 fits into ambulatory surgery centers, orthopedic clinics, sports medicine facilities, urgent care, and rural or point-of-care settings — as a tabletop standalone unit or mounted on an optional cart.
• Low-Power, Simple Installation: Runs on a standard, single-phase power supply — no specialized electrical construction required — making installation fast, simple, and cost-effective. Minimal room shielding is needed, so the system integrates seamlessly into an existing X-ray room.

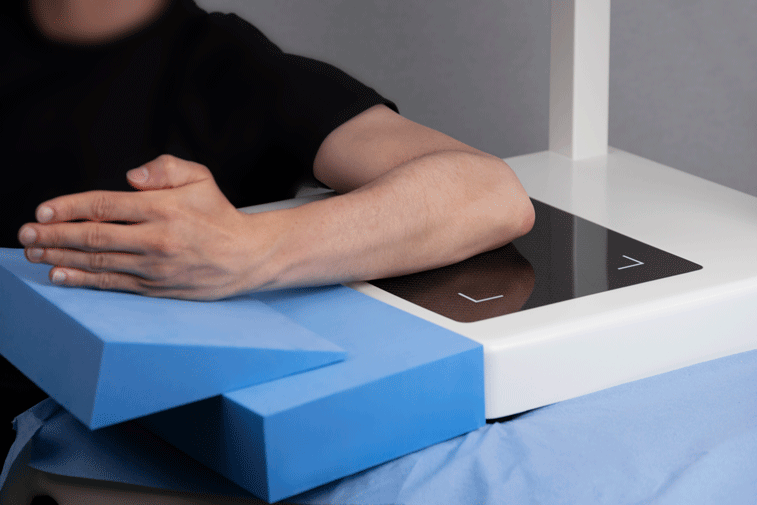

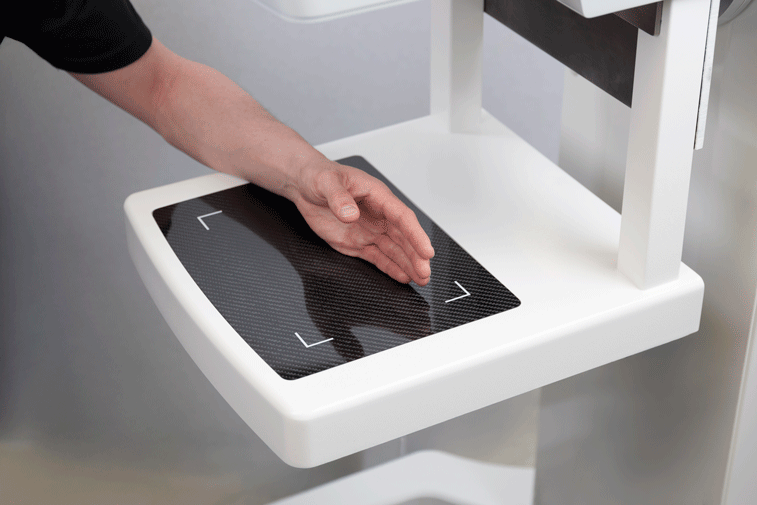

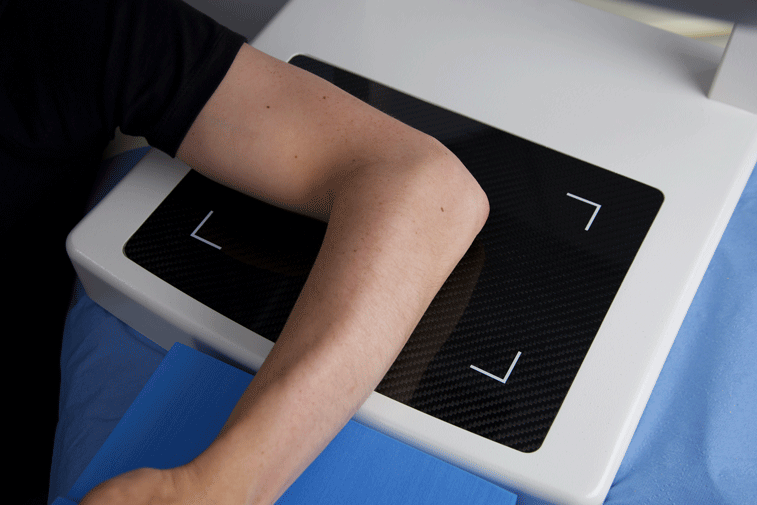

• Flexible Positioning: Designed to image orthopedic extremities including knees, ankles, feet, wrists, hands, and elbows. Optional footrests enable true weight-bearing imaging of knees, ankles, and feet — giving a true-to-life view of joint spacing, alignment, and structural integrity.
• Connected — RIS & PACS Ready: Fully DICOM RIS & PACS compatible, with structured dose-reporting for smooth, secure, and reliable image transfer — streamlining workflow from acquisition straight through to diagnosis.
